The working principle of air source heat pump triple supply
2021-09-01
1. Classification of triple supply
The triple supply mentioned here is a heat pump unit that can provide three functions: air conditioning, floor heating and hot water. Also known as triple heat pump, triple air conditioner, cold, heating and hot water triple supply, air conditioner floor heating and hot water triple supply, air conditioner and hot water triple supply, hot water air conditioner triple supply, air conditioner floor heating and hot water triple use machine, air conditioner hot water machine, air conditioner Hot water all-in-one, air-conditioning water heaters, three-in-one heat pumps, etc. From the perspective of central air conditioning, triple supply is also known as total heat recovery central air conditioning.
According to the different sources of heat sources, the triple supply is divided into air source heat pump triple supply and ground source heat pump triple supply. Among them, ground source products are also called water source heat pump triple supply, triple supply ground source heat pump, etc., air source heat pump triple supply is also called air energy triple supply, air source air-conditioning water heater, air source heat pump three-purpose machine, etc. Wait. From the perspective of usage, the air source heat pump triple supply is divided into household air energy triple supply and commercial air energy triple supply. Also known as household air-conditioning water heaters and commercial air-conditioning water heaters.

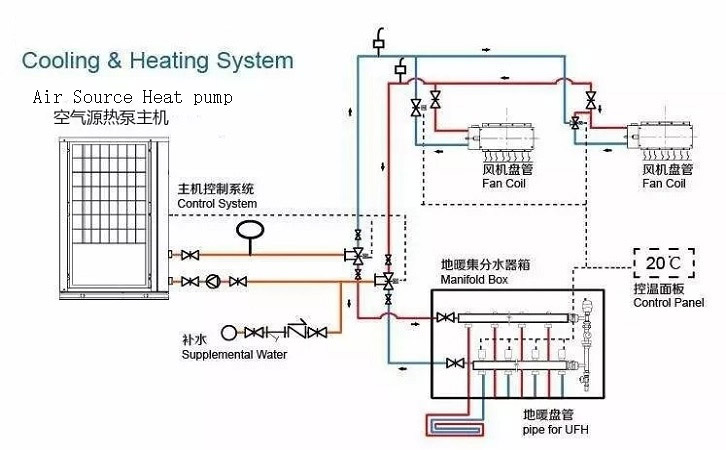

2. The working principle of air source heat pump triple supply
When making hot water alone: the circulating water pump supporting the hot water heat exchanger works, the circulating water pump of the air conditioner heat exchanger does not work, the fan of the fin heat exchanger works, and the working fluid is released in the hot water heat exchanger after the compressor is running. Heat, absorb heat in the fin heat exchanger, forming a hot water process.
When making hot water and cooling: the hot water heat exchanger is equipped with a circulating water pump, the circulating water pump of the air conditioner heat exchanger works, the fan of the fin heat exchanger does not work, and the working fluid is released in the hot water heat exchanger after the compressor is running. Heat, absorb heat in the air-conditioning heat exchanger, forming a cooling and hot water process.
When cooling alone: the circulating water pump of the hot water heat exchanger does not work, the circulating water pump of the air conditioner heat exchanger works, and the fan of the fin heat exchanger works. After the compressor runs, the working fluid releases heat in the fin heat exchanger. The air-conditioning heat exchanger absorbs heat to form a refrigeration process.
When heating alone: the circulating water pump of the hot water heat exchanger does not work, the circulating water pump of the air conditioner heat exchanger works, and the fan of the fin heat exchanger works. After the compressor is running, the working fluid absorbs heat energy in the fin heat exchanger. Heat energy is released in the air conditioner heat exchanger to form a heating process.
The triple supply mentioned here is a heat pump unit that can provide three functions: air conditioning, floor heating and hot water. Also known as triple heat pump, triple air conditioner, cold, heating and hot water triple supply, air conditioner floor heating and hot water triple supply, air conditioner and hot water triple supply, hot water air conditioner triple supply, air conditioner floor heating and hot water triple use machine, air conditioner hot water machine, air conditioner Hot water all-in-one, air-conditioning water heaters, three-in-one heat pumps, etc. From the perspective of central air conditioning, triple supply is also known as total heat recovery central air conditioning.
According to the different sources of heat sources, the triple supply is divided into air source heat pump triple supply and ground source heat pump triple supply. Among them, ground source products are also called water source heat pump triple supply, triple supply ground source heat pump, etc., air source heat pump triple supply is also called air energy triple supply, air source air-conditioning water heater, air source heat pump three-purpose machine, etc. Wait. From the perspective of usage, the air source heat pump triple supply is divided into household air energy triple supply and commercial air energy triple supply. Also known as household air-conditioning water heaters and commercial air-conditioning water heaters.
2. The working principle of air source heat pump triple supply
When making hot water alone: the circulating water pump supporting the hot water heat exchanger works, the circulating water pump of the air conditioner heat exchanger does not work, the fan of the fin heat exchanger works, and the working fluid is released in the hot water heat exchanger after the compressor is running. Heat, absorb heat in the fin heat exchanger, forming a hot water process.
When making hot water and cooling: the hot water heat exchanger is equipped with a circulating water pump, the circulating water pump of the air conditioner heat exchanger works, the fan of the fin heat exchanger does not work, and the working fluid is released in the hot water heat exchanger after the compressor is running. Heat, absorb heat in the air-conditioning heat exchanger, forming a cooling and hot water process.
When cooling alone: the circulating water pump of the hot water heat exchanger does not work, the circulating water pump of the air conditioner heat exchanger works, and the fan of the fin heat exchanger works. After the compressor runs, the working fluid releases heat in the fin heat exchanger. The air-conditioning heat exchanger absorbs heat to form a refrigeration process.
When heating alone: the circulating water pump of the hot water heat exchanger does not work, the circulating water pump of the air conditioner heat exchanger works, and the fan of the fin heat exchanger works. After the compressor is running, the working fluid absorbs heat energy in the fin heat exchanger. Heat energy is released in the air conditioner heat exchanger to form a heating process.
